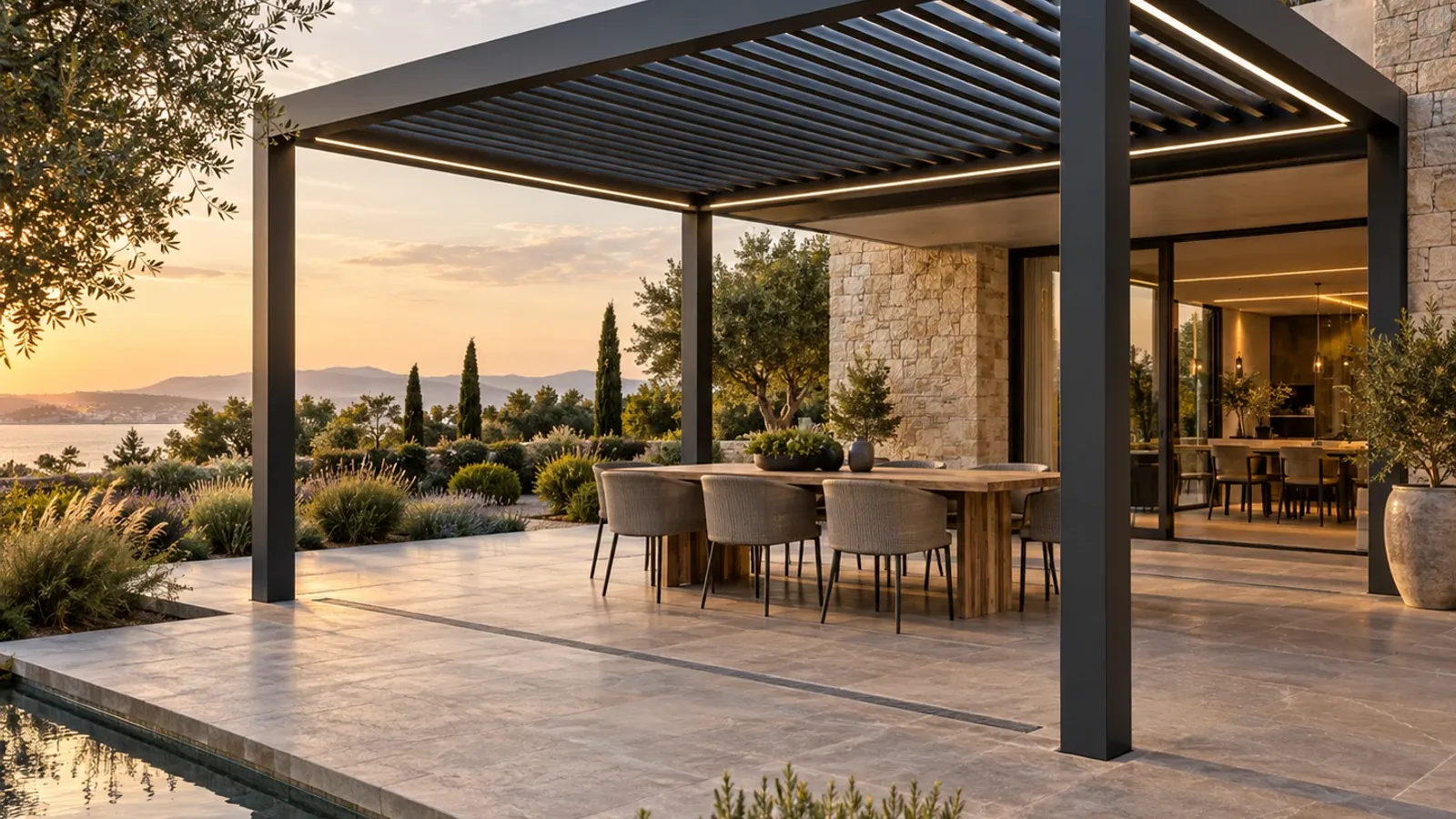

JY160 is the compact manual model in the LUCY range. It suits courtyards, small patios and residential seating areas where simple louver adjustment is preferred over powered daily operation. Final dimensions are prepared for the actual layout and fixing condition.
Best for
- Compact residential courtyards
- Small villa or apartment terraces
- Projects preferring manual roof adjustment
- Basic shade layouts with straightforward accessories
Technical specifications
| Model | JY160 |
|---|---|
| Roof type | Rotating aluminum louvers |
| Operation | Manual rotating louvers |
| Application | Compact residential |
| Installation | Freestanding or attached, according to site and support review |
| Compatible accessories | Integrated LED lighting where compatible; ZIP screens for reviewed openings; Selected glass or privacy panels; Project-selected finish |
| Control | Manual operating mechanism; final handle or gearbox available after technical review |
| Drainage | Integrated roof-to-gutter-to-post drainage concept; outlet arrangement is project-specific |
| Finish | Project-selected finish; standard colors available after technical review |
| Project-specific data | Profile sizes, module limits, motor package and load values are available after engineering review |
Detailed structural dimensions and performance data are confirmed against the approved project specification.
Roof & Structure
The compact frame supports rotating aluminum roof louvers operated without an electric drive. Blade alignment, the manual mechanism, perimeter drainage and convenient operating access are the main coordination points for a JY160 layout.
JY160 uses a manual operating mechanism. Handle or gearbox details, rotation range and service access are selected for the approved configuration.
Compatible accessories
- Integrated LED lighting where compatible
- ZIP screens for reviewed openings
- Selected glass or privacy panels
- Project-selected finish
Compatibility depends on the selected model, finished opening and approved elevation. Review all pergola accessories, ZIP screens and sliding or folding glass.
Choose JY160 when
JY180 is the closest alternative when the same residential intent needs motorized rotating louvers.
- The project is a compact courtyard or residential terrace
- Manual roof adjustment is acceptable
- A simple residential configuration is preferred
- Choose JY180 when powered daily operation is important
- Choose JY220 when hospitality use, connected bays or heavier accessory planning drives the brief
Compare models
| Model / route | Roof movement | Selection context |
|---|---|---|
| JY160 | Manual rotating louvers | Compact residential starting point |
| JY180 | Motorized rotating louvers | Larger residential and villa projects |
Project planning & installation notes
JY160 is intended for small courtyard, compact terrace, residential patio, garden seating area. Set posts, roof zones and accessory openings around circulation, doors, furniture and service access.
Before production, coordinate foundations or building connections, anchors, roof direction, outlet posts, manual operating access and local approvals.
Common questions
How large can one JY160 module be?+
Module dimensions are established after the project layout, support condition and local criteria are reviewed.
Is JY160 motorized?+
No. JY160 is the manual option in the current model range.
Which LUCY model is better for a compact villa patio?+
JY160 is the compact manual starting point; choose JY180 instead when powered operation is important.
Project brief
Before requesting a quote
Send enough information to identify the model, layout and accessory interfaces.
- Project location and intended use
- Overall width, projection and preferred post positions
- Freestanding or wall-connected installation
- Required accessories, controls and finish direction
- Site photos or drawings when available
Project configuration review
Discuss your pergola project with LUCY.
Share the intended use, location, dimensions and options for JY160 Manual Louvered Pergola. LUCY will review the model and project interfaces before preparing a factory quotation.
